Siemens 15-GMI-500-1200-37 AC

1 YEAR WARRANTY

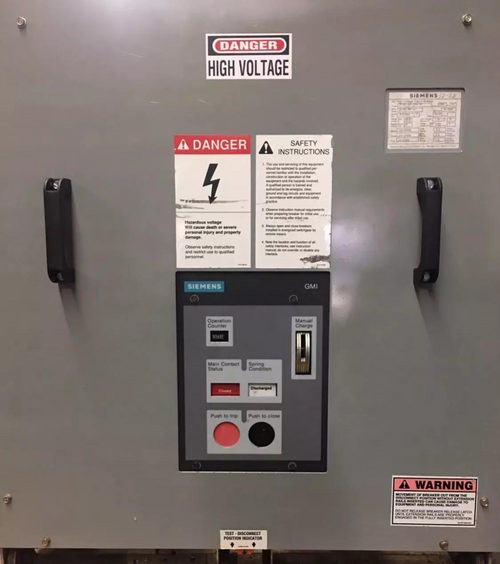

Catalog No. 15-GMI-500-1200-37 AC High Voltage Vacuum Circuit Breaker

1200A

60Hz

Wire Diag. 18-746-350-401

Manual SG-3268

Rated Max Volts kV 15.0

Rated Short Circuit 18

Volt Range Factor K 1.30 Bil kV 95

Close Latch kA 37

Interrupting Time Cycles 5

Motor 100-140 VDC V. Range

2.5A Nominal

Close 100-140 VDC V. Range

3.8A Nominal

Trip 70-140 VDC V. Range

3.8A CAP Amps Nominal

Interested in the Siemens 15-GMI-500-1200-37 AC High Voltage Breaker 1200 Amp 15 kV 60 Hz? Contact Circuit Breaker Sales.
